KSS

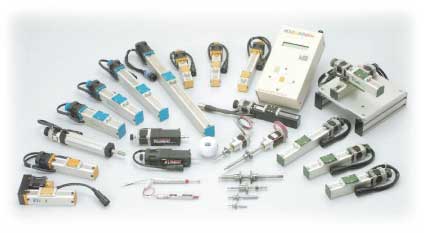

Miniature Ball Screw


KUMI series - up to 24 mm wide and 30 mm high
Model
Units
KUMI-10-28
KUMI-30-28
KUMI-60-28
Stroke
(mm)
10
30
60
Repeated positioning accuracy
(mm)
±0.03
±0.03
±0.03
Maximum speed
(mm/sec)
50
80
100
Weight
(kg)
0.2
0.23
0.25


KUMIKO series - up to 26 mm wide and 37 mm high

Model
Units
KUMIKO-40-28
KUMIKO-60-28
KUMIKO-120-28
Stroke
(mm)
40
60
120
Repeated positioning accuracy
(mm)
±0.01
±0.01
±0.01
Maximum speed
(mm/sec)
120
120
120
Weight
(kg)
0.27
0.28
0.33
KUMINA series - up to 24 mm wide and 30 mm high

Model
Units
KUMINA-20-24
KUMINA-30-24
KUMINA-30-24
Stroke
(mm)
20
30
60
Repeated positioning accuracy
(mm)
±0.005
±0.005
±0.005
Maximum speed
(mm/sec)
20
20
20
Weight
(kg)
0.2
0.21
0.23

KUMIRI series - Ultra-compact, small-stroke

Model
Units
KUMIRI-5SP
KUMIRI-5SP
Stroke
(mm)
10
10
Repeated positioning accuracy
(mm)
±0.002
±0.002
Sensor
Photo micro sensor (2 point) : 5V DC, 50mA
Weight
(kg)
0.27
0.2

KUMICON series - Two-axis controller designed especially for the KUMI, KUMIKO, KUMINA, and KUMIRI-5 series

Model
KUMICON-2
Controller unit
Input power supply
AC100~240V 50/60Hz
Interface
RS232C interface
Driver unit
Compatible motor
Five-phase stepping motor, 0.35 A/phase
Current reduction
Automatic
