URAS
TECHNO |
 |
Vibrator
Motor |
|
|
|
Three
Phase Specifications
|
| Power supply |
200/200/220V 50/60/60Hz
400/400/440V 50/60/60Hz |
| Time rating |
Continuous rating |
| Thermal class |
Class E insulation |
| Protection structure |
Totally enclosed models: IP66
(JIS C 0920)
Totally enclosed, fan-cooled models:
IP55 (JIS C 4034-5) |
| Enclosed cable |
2PNCT (4-core)
x 2 m
Wire sizes: 0.75, 1.25, 2, 8, or
14 mm²
The KEE-0.5-2C has a 1m cable,
and the SEE-0.5-2C has a 2-core
1m cable. |
| Installation method |
Frame leg installation (at any
installation angle)
For vertical or inclined installation,
however,
the vibrator must be installed
so that the terminal box is on the
top. |
| Coating color |
Munsell 2.5PB5/2 |
| Installation location |
Indoors |
| Installation environment |
Ambient and installation
base temperature: |15 to 40
Altitude: 1,000 m max.
Relative humidity: 85% max. with
no condensation |
|

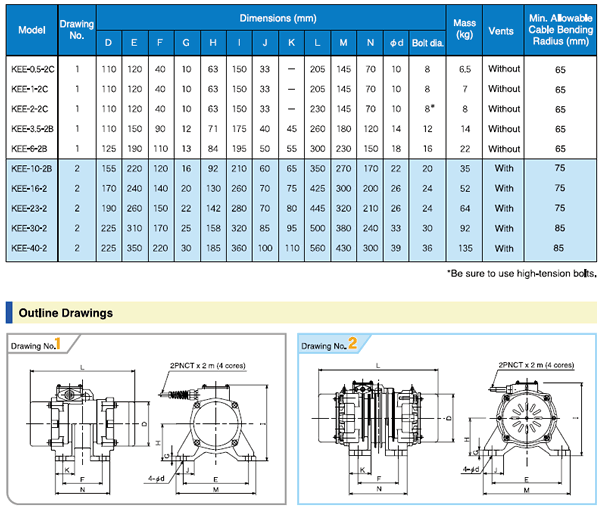

| Two
Poles |
| Model |
Maximum
vibrating force
(kN) |
Output (kW) |
| KEE-0.5-2C |
0.5 |
0.040 |
| KEE-1-2C |
1 |
0.075 |
| KEE-2-2C |
2 |
0.15 |
| KEE-3.5-2B |
3.5 |
0.25 |
| KEE-6-2B |
6 |
0.40 |
| KEE-10-2B |
10 |
0.75 |
| KEE-16-2 |
16 |
1.2 |
| KEE-23-2 |
23 |
1.7 |
| KEE-30-2 |
30 |
2.2 |
| KEE-40-2 |
40 |
3.0 |
Number
of revolutions (i.e.,
vibrations)
in synchronous operation
3,600r/min (60Hz vibration)
for power supply frequency
of 60Hz
3,000r/min (50Hz vibration)
for power supply frequency
of 50Hz |
|
|
|

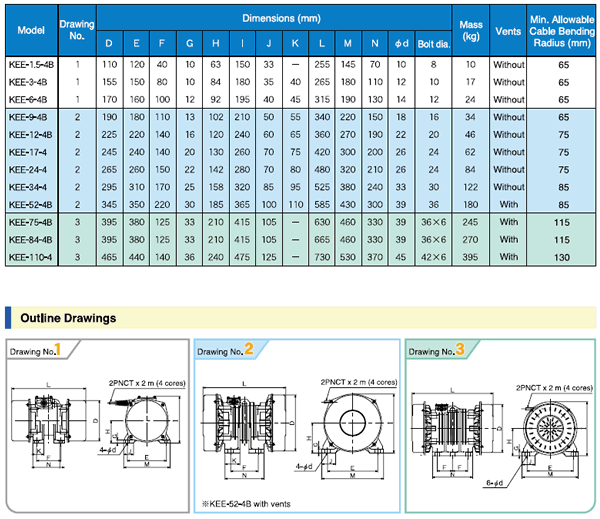

4
Poles |
Model |
Maximum
vibrating force
(kN) |
Output (kW) |
| KEE-1.5-4B |
1.5 |
0.065 |
| KEE-3-4B |
3 |
0.13 |
| KEE-6-4B |
6 |
0.25 |
| KEE-9-4B |
9 |
0.40 |
| KEE-12-4B |
12 |
0.60 |
| KEE-17-4 |
17 |
0.85 |
| KEE-24-4 |
24 |
1.1 |
| KEE-34-4 |
34 |
1.5 |
| KEE-52-4B |
52 |
2.2 |
| KEE-75-4B |
75 |
3.7 |
| KEE-84-4B |
84 |
5.5 |
| KEE-110-4 |
110 |
7.5 |
Number
of revolutions (i.e.,
vibrations)
in synchronous operation
1,800r/min (60Hz vibration)
for power supply frequency
of 30Hz
1,500r/min (50Hz vibration)
for power supply frequency
of 25Hz |
|
|
|

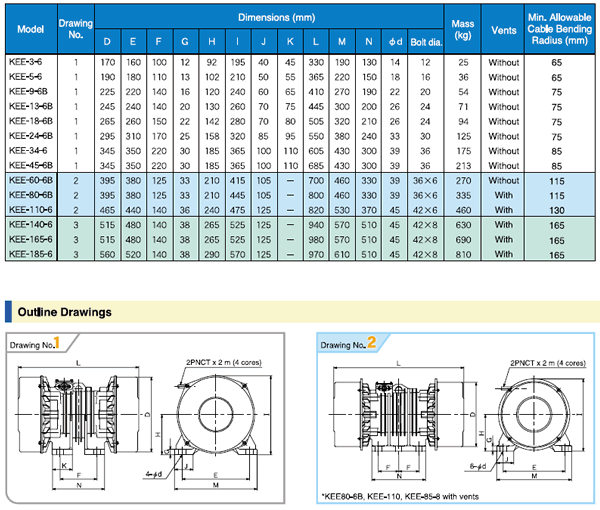

| 6
Poles |
Model |
Maximum
vibrating force
(kN) |
Output (kW) |
| KEE-3-6 |
3 |
0.20 |
| KEE-5-6 |
5 |
0.35 |
| KEE-9-6B |
9 |
0.60 |
| KEE-13-6B |
13 |
0.85 |
| KEE-18-6B |
18 |
1.2 |
| KEE-24-6C |
24 |
1.6 |
| KEE-34-6 |
34 |
2.2 |
| KEE-45-6B |
45 |
3.0 |
| KEE-60-6B |
60 |
3.7 |
| KEE-80-6B |
80 |
5.5 |
| KEE-110-6 |
110 |
7.5 |
| KEE-140-6 |
140 |
9 |
| KEE-165-6 |
165 |
11 |
| KEE-185-6 |
185 |
13 |
Number
of revolutions (i.e.,
vibrations)
in synchronous operation
1,200r/min (60Hz vibration)
for power supply frequency
of 20Hz
1,000r/min (50Hz vibration)
for power supply frequency
of 16.7Hz
|
|
|
|

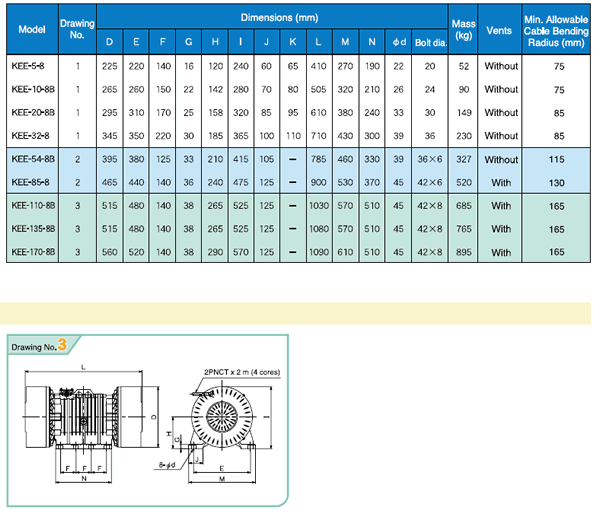

| 8Poles
|
Model |
Maximum
vibrating force
(kN) |
Output (kW) |
| KEE-5-8 |
5 |
0.40 |
| KEE-10-8B |
10 |
0.75 |
| KEE-20-8B |
20 |
1.5 |
| KEE-32-8 |
32 |
2.2 |
| KEE-54-8B |
54 |
3.7 |
| KEE-85-8 |
85 |
6.0 |
| KEE-110-8B |
110 |
7.5 |
| KEE-135-8B |
135 |
9 |
| KEE-170-8B |
170 |
11 |
Number
of revolutions (i.e.,
vibrations)
in synchronous operation
900r/min (60Hz vibration)
for power supply frequency
of 15Hz
750r/min (50Hz vibration)
for power supply frequency
of 12.5Hz
|
|
|
|
|
|
|
