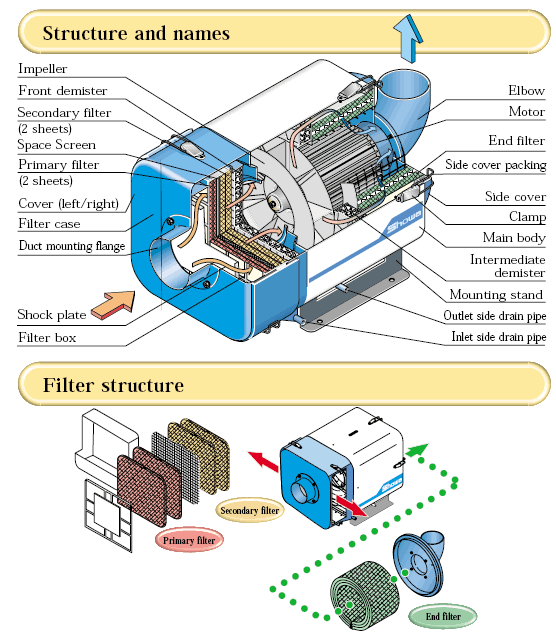

Mistresa CRD series |
|
Excellent Motor
properties
Motor thermal
protection unit
Easy ducting
Simple
Safe maintenance
For mist and dust
Simple clogging
check
High collecting
efficiency |
|
|
|

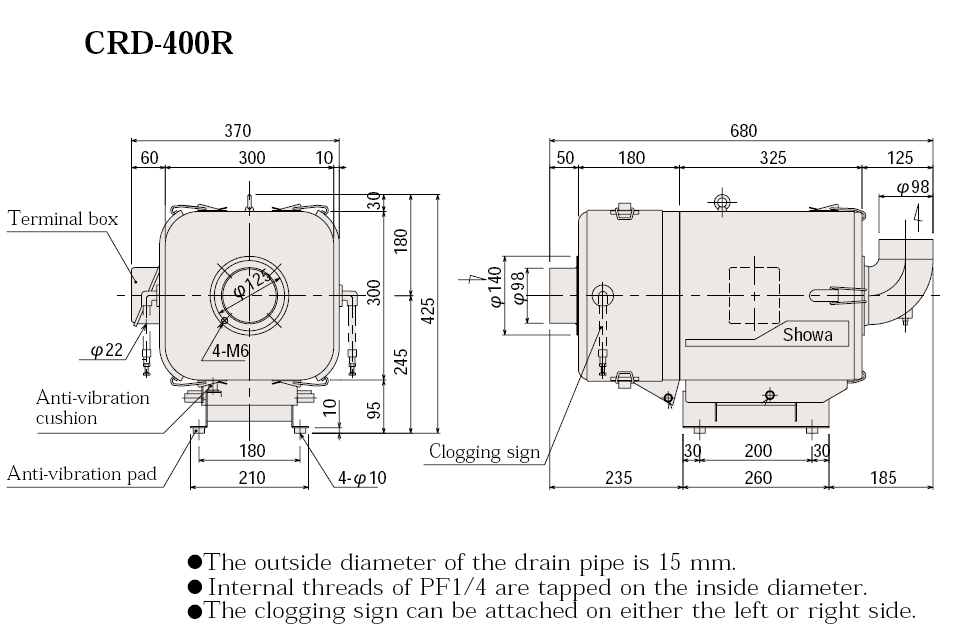

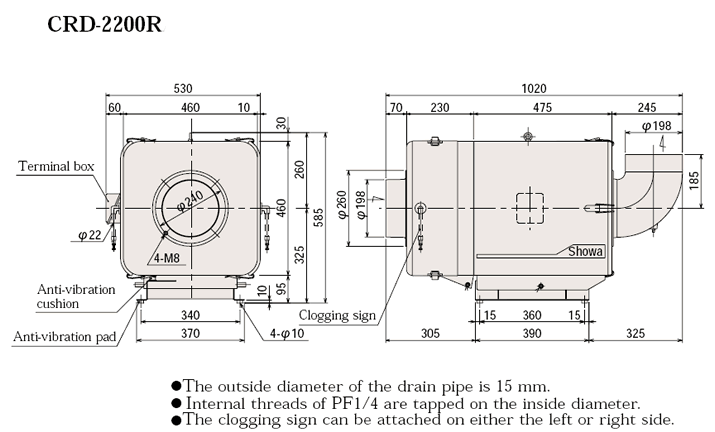

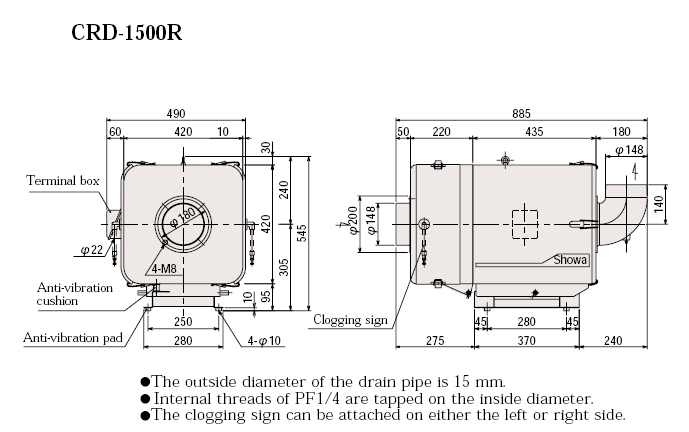

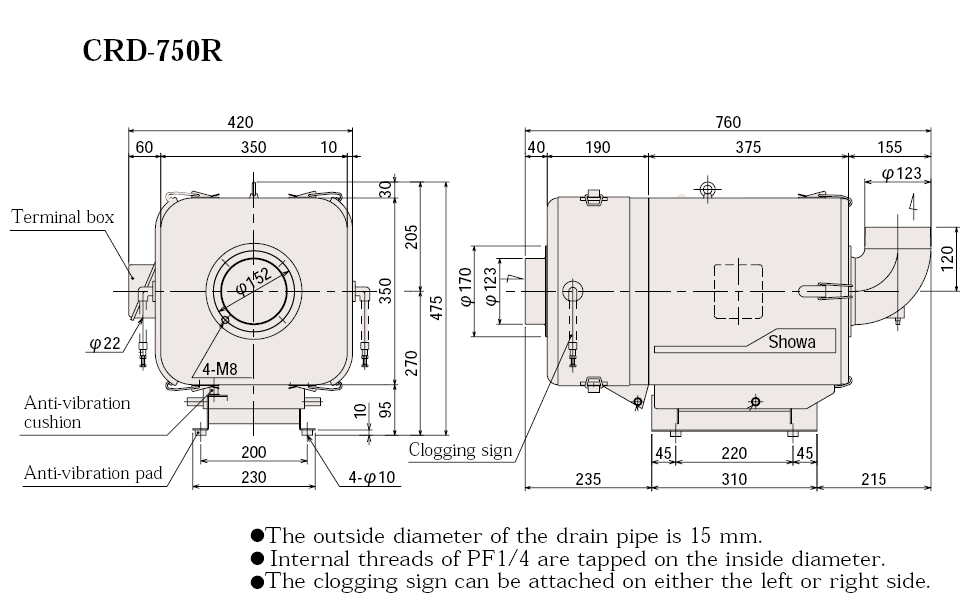

| Dimension -> |
|
|
|
|
| Power
source |
Three
phase 50Hz 200V 60Hz 200V/220V |
|
Output kW |
0.4 |
0.75 |
1.5 |
2.2 |
| Frequency
Hz |
50/60/60 |
50/60/60 |
50/60/60 |
50/60/60 |
| Current
A |
2.0/1.8/1.8 |
3.0/2.9/2.9 |
6.0/6.0/5.7 |
9.0/9.0/8.5 |
| Max
air flow m3/min |
4.2/5.0 |
8.0/9.6 |
15/18 |
20/24 |
| Max
static pressure kPa |
0.75/1.10 |
1.10/1.60 |
1.60/2.25 |
1.70/2.40 |
| Noise
in field 1m dB (A) |
59/63 |
64/68 |
70/74 |
71/75 |
| Collection
efficiency % |
99.8
Gravimetric method oil mist |
| Highest
intake temperature¡î |
50 |
| Mass
kg |
30 |
41 |
59 |
70 |
| Inlet
diameter(mm) |
98 |
123 |
148 |
198 |
| Ambient
temperature¡î |
MAX.50 |
|
Color |
Main
body N-8(white), side cover etc
2.5PB 3.5/108(blue), mount NH(black) |
| Standard
accessories |
primary
filter (for replacement)...1
sheet
drain tubes 2.5mm...2
unit
Hosebands (for drain
tubes)...2 unit
|
Crimping
terminals (TMEV2Y-3.5)...7
unit
vibration absorption
pads...4 unit
tooling paper template...1
sheet¡¡
|
companion
flange set...1 unit |
|
|
|

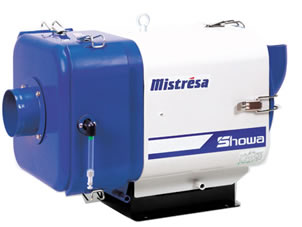

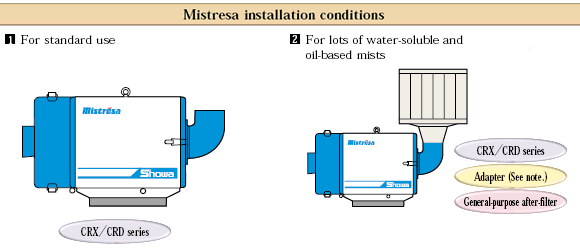

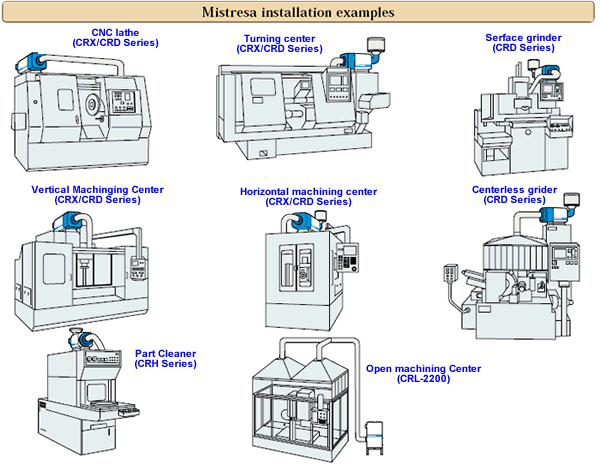

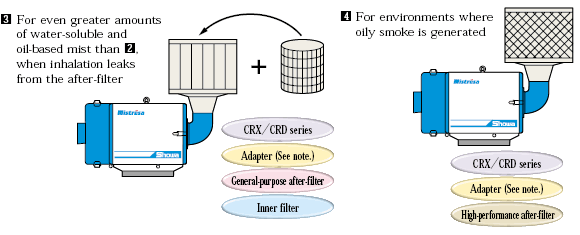

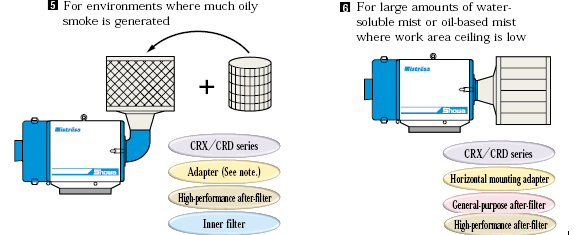

Mistresa CRX series |
|
|
Easy maintenance
Compact and easy installation
Excellent collecting efficiency
Double vibration absorption
structure |
| |
CRX-04 |
CRX-07 |
CRX-15 |
CRX-22 |
| Power
source |
Tree phase
50Hz 200V 60Hz 200V/220V |
|
Output kW |
0.4 |
0.75 |
1.5 |
2.2 |
| Frequency
Hz |
50/60/60 |
50/60/60 |
50/60/60 |
50/60/60 |
| Current
A |
2.0/1.8/1.8 |
3.0/2.9/2.9 |
6.0/6.0/5.7 |
9.0/9.0/8.5 |
| Max
air flow m3/min |
3.4/4.0 |
6.5/7.5 |
12/14.5 |
19/19 |
| Max
static pressure kPa |
0.75/1.10 |
1.10/1.60 |
1.60/2.25 |
1.70/2.40 |
| Noise
in field 1m dB (A) |
60/64 |
66/71 |
71/75 |
75/79 |
| Collection
efficiency % |
99.8 Gravimetric
method oil mist |
| Highest
intake temperature ¡î |
50 |
| Mass
kg |
33 |
43 |
62 |
75 |
| Inlet
diameter mm |
98 |
123 |
148 |
198 |
| Ambient
temperature ¡î |
MAX.50 |
|
Color |
Main body
N-8(white), side cover etc 2.5PB 3.5/108(blue),
mount NH(black) |
| Standard
accessories |
| primary filter
(for replacement)...1 sheet
drain tubes 2.5mm...2 unit
Hosebands (for drain tubes)...2
unit |
Crimping
terminals (TMEV2Y-3.5)...7
unit
vibration absorption pads...4
unit
tooling paper template...1
sheet |
companion
flange set...1 unit¡¡ |
|
|
|

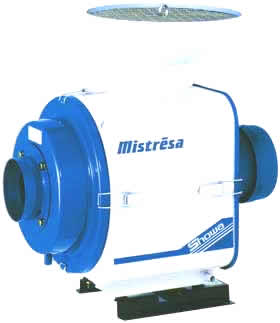

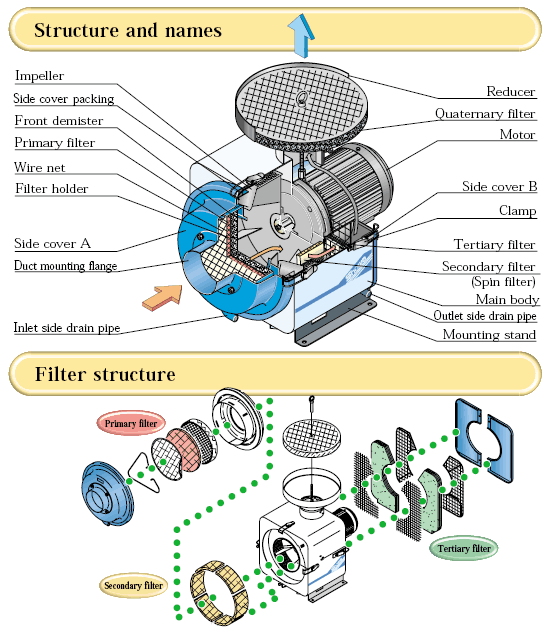

Mistresa CRH series |
|
Double
vibration absorption structure
Maintenance without
tools
Rust-resistant paint.
Able to use in high-temperature
mist (up to 80¡î)
Three-layer bearing
protection
Excellent collecting
efficiency by four-stage filters
Can be used for
large dust to powder dust |
|
|
|
| |
CRH-100T/E |
CRH-200T/E |
CRH-400T/E |
CRH-750T/E |
CRH-1500T/E |
| Power
source |
Tree phase
200V 50/60Hz¡¡220V 60Hz |
|
Output kW |
0.2 |
0.2 |
0.4 |
0.75 |
1.5 |
| Frequency
Hz |
50/60/60 |
50/60/60 |
50/60/60 |
50/60/60 |
50/60/60 |
| Current
A |
1.2/1.1/1.0(T)
1.1/1.0/1.0(E) |
1.2/1.1/1.0(T)
1.1/1.0/1.0(E) |
2.0/1.8/1.7 |
3.3/3.1/2.8(T)
3.1/3.0/2.8(E) |
6.2/5.8/5.4(T)
5.7/5.7/5.2(E) |
| Max
air flow m3/min |
2.1/2.4 |
2.7/3.2 |
4.7/5.8 |
8.0/9.6 |
14/17 |
| Max
static pressure°µ kPa |
0.30/0.42 |
0.50/0.73 |
0.80/1.10 |
1.00/1.40 |
1.60/2.20 |
| Noise
in field 1m db |
56/60 |
59/63 |
62/66 |
67/71 |
70/72 |
| Collection
efficiency |
99.4¡ÊGravimetric
method oil mist |
| Highest
intake temperature |
80 |
| Mass
kg |
13 |
20 |
24 |
32 |
49 |
| Inlet
diameter mm |
¦Õ98 |
¦Õ98 |
¦Õ98 |
¦Õ123 |
¦Õ148 |
|
Ambient temperature
|
MAX.40 |
|
Color |
Main body
N-8(white), side cover etc 2.5PB 3.5/108(blue),
mount NH(black) |
| Standard
accessories |
| primary filter
(for replacement)...1 sheet
drain tubes 2.5mm...2?unit
Hose bands (for drain tubes)...2
unit |
unitvibration
absorption pads...4 unit
tooling paper template...1
sheet
companion flange set...1?unit |
|
|
|
